SPECIFICATIONS

Brand Name: RCXAZ

Certification: CE,FCC

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: 1/10

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Size: 1/10

Technical parameters: value 3

Tool Supplies: SERVO

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

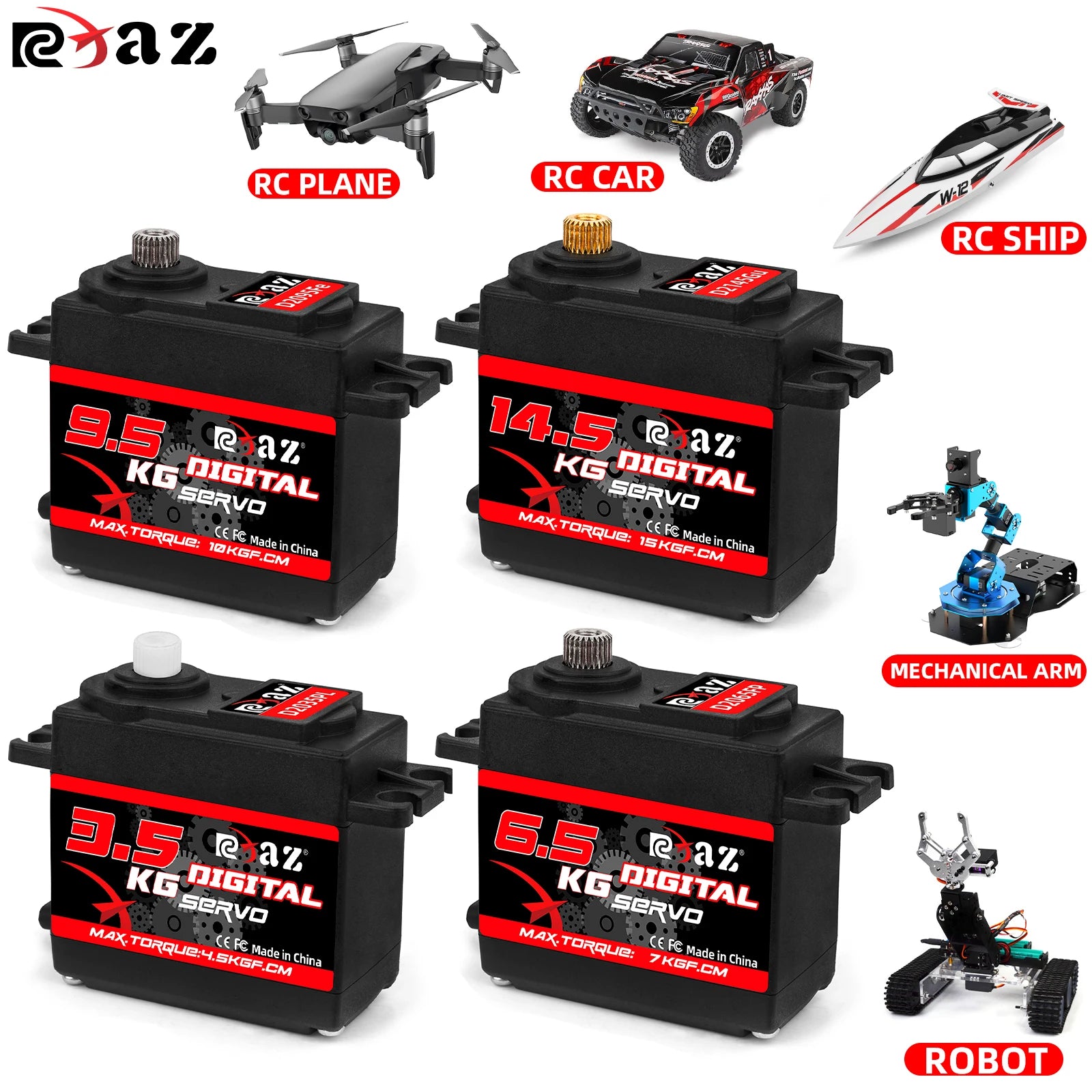

Suit for RC car boat helicopter model

Specifications:

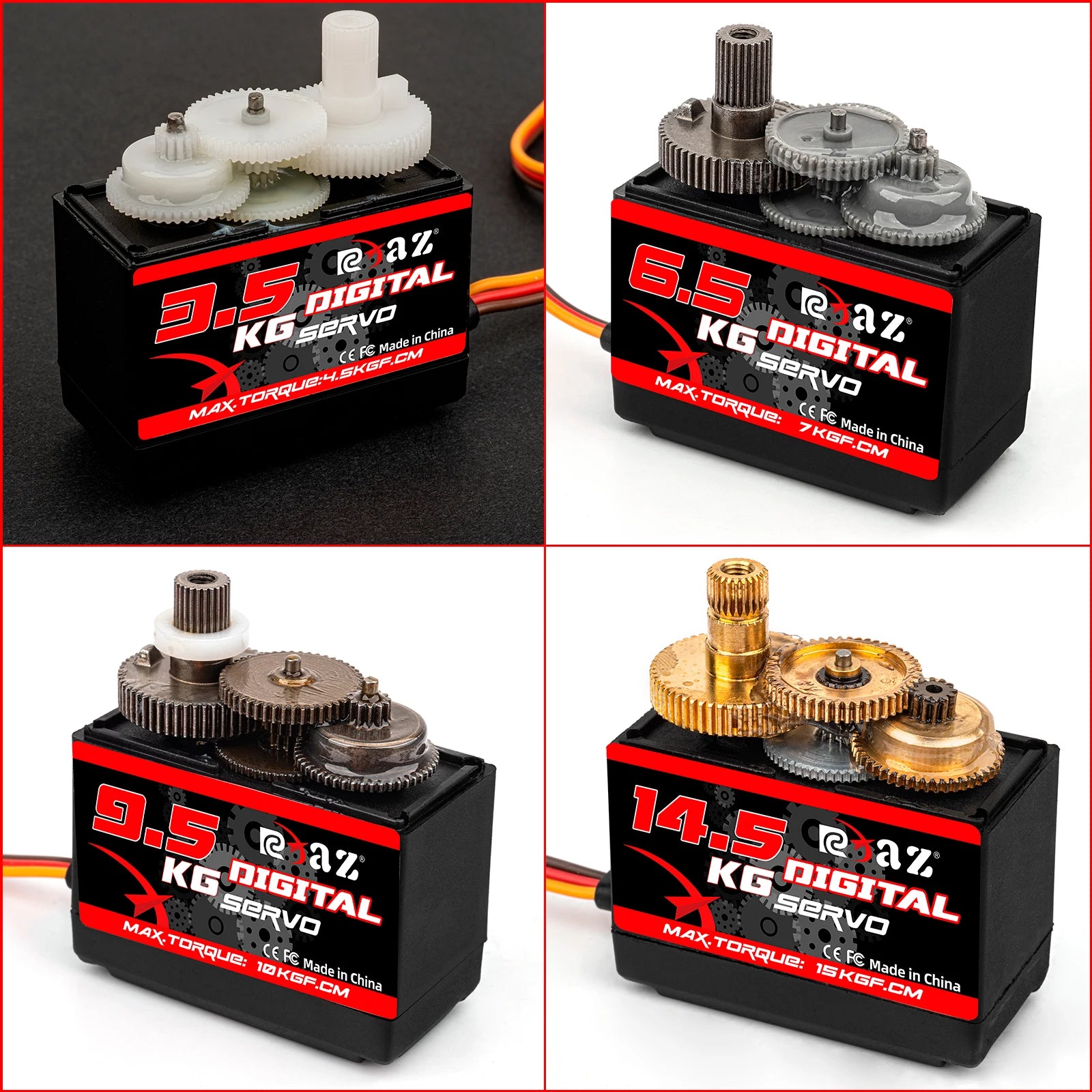

Item name: D2035PL

Quantity: 1pcs

Operating Voltage : 4.8~7.4V DC

Max. Torque : 4.8V≥5.0kgf·cm ； 7.5V≥5.0kgf·cm

No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦680mA；6.0V≦780mA

Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA

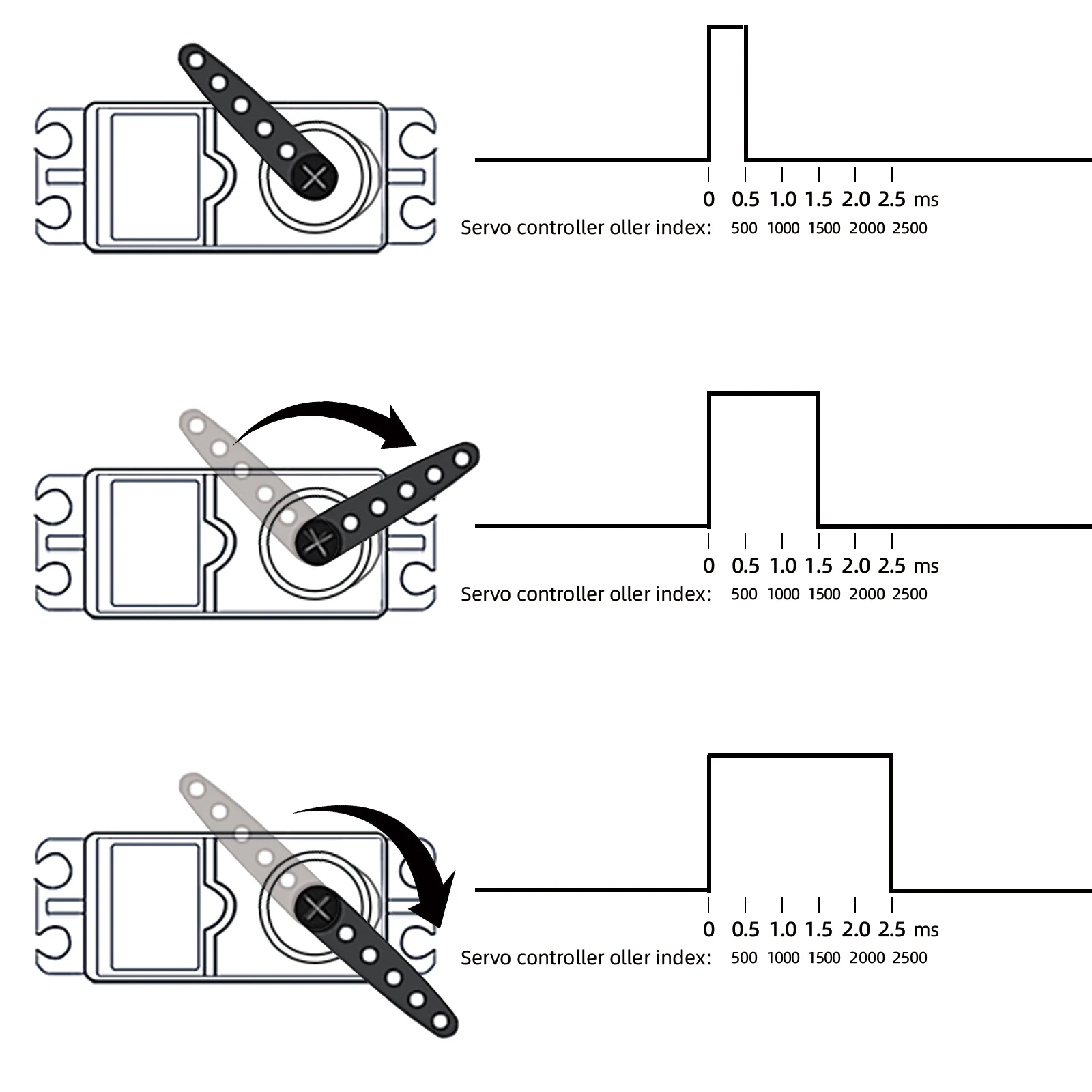

Max. Operating Travel Angle：180°±10°(500~2500μs）

Dead Band Width: ≤ 3us

Mechanical Limit Angle: 180°

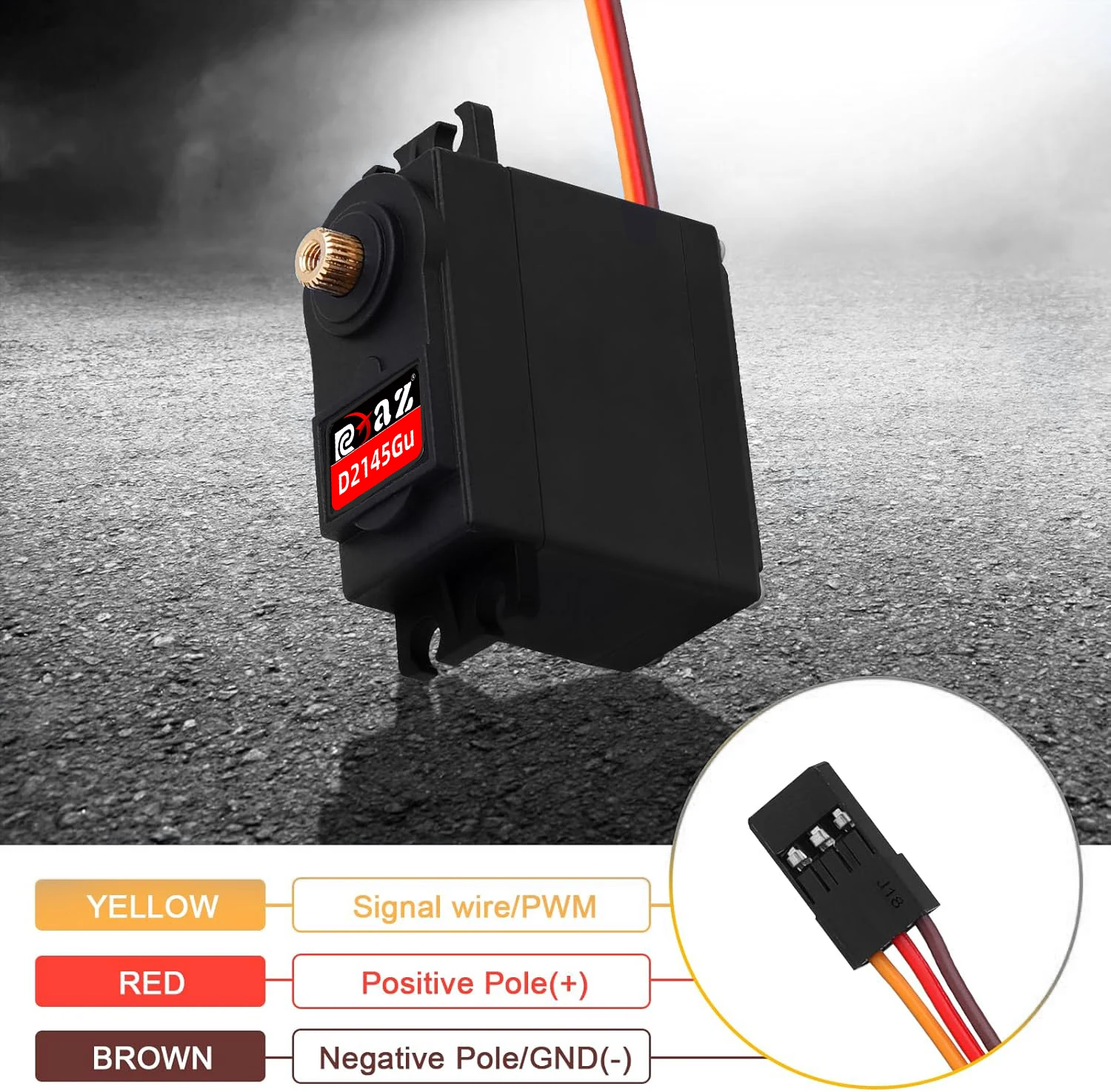

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Plastic gear

Weight: 55g

Size: 54 × 20× 45mm

Length of Connector cable: JR 280±5mm (exposed without plug)

Item name: D2065FP

Quantity: 1pcs

Operating Voltage : 4.8~7.4V DC

Max. Torque : 4.8V≥6.0kgf·cm ； 9.5V≥6.0kgf·cm

No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦680mA；6.0V≦780mA

Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA

Max. Operating Travel Angle：180°±10°(500~2500μs）

Dead Band Width: ≤ 3us

Mechanical Limit Angle: 180°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Plastic/Metal gear

Weight: 62g

Size: 54 × 20× 45mm

Length of Connector cable: JR 200±5mm (exposed without plug)

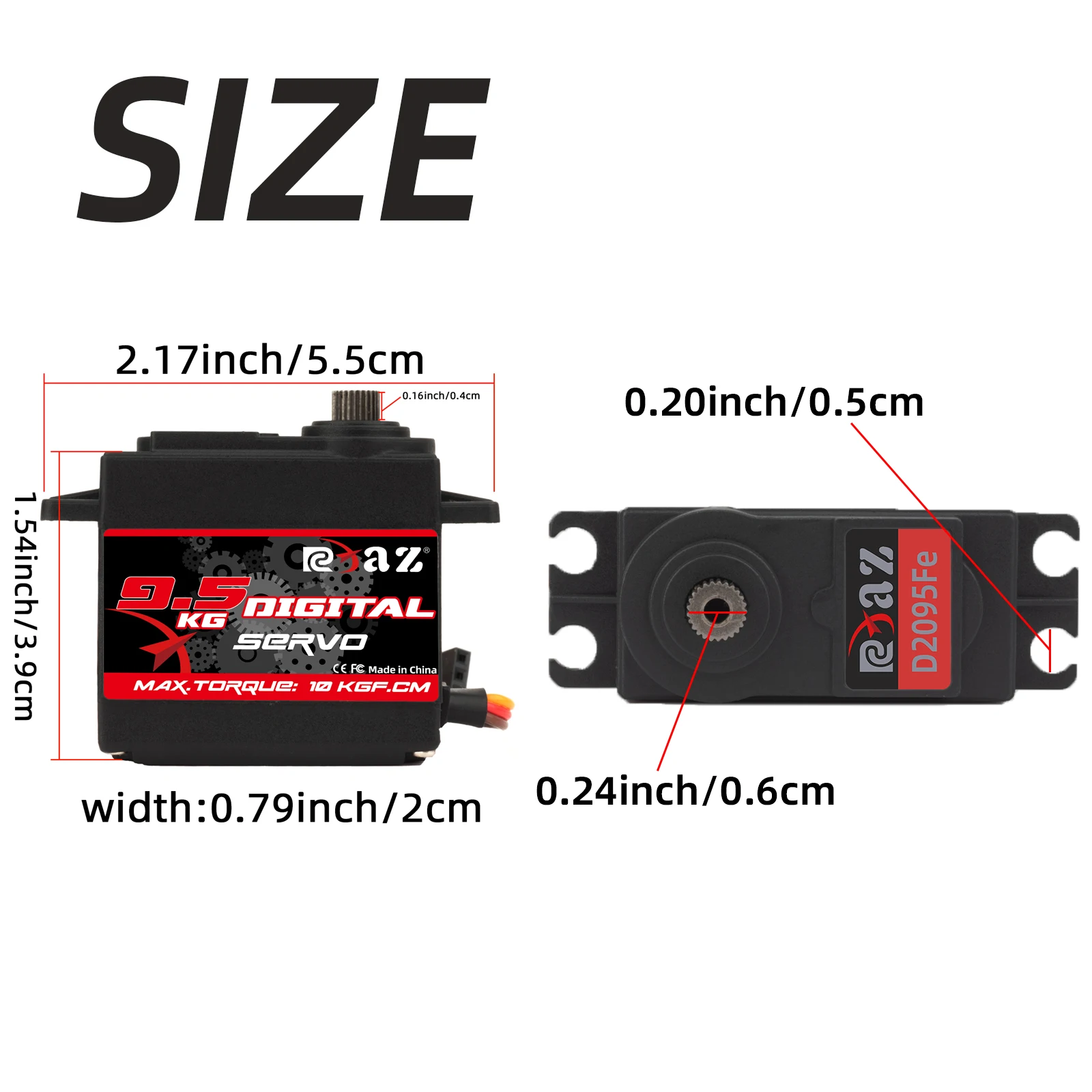

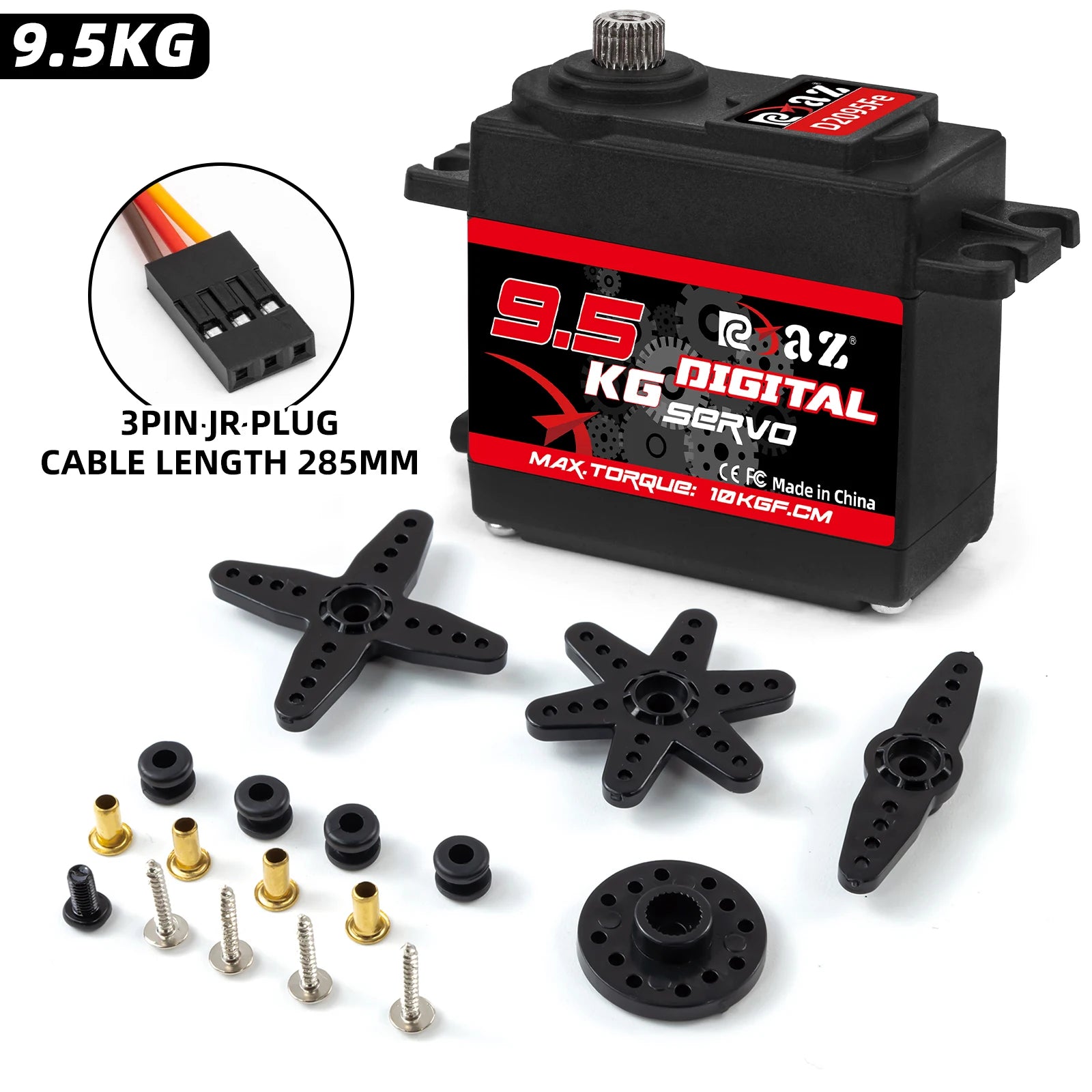

Item name: D2095Fe

Operating Voltage : 4.8~7.4V DC

Max. Torque : 4.8V≥9.5kgf·cm ； 14.5V≥9.5kgf·cm

No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦680mA；6.0V≦780mA

Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA

Max. Operating Travel Angle：180°±10°(500~2500μs）

Dead Band Width: ≤ 3us

Mechanical Limit Angle: 180°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

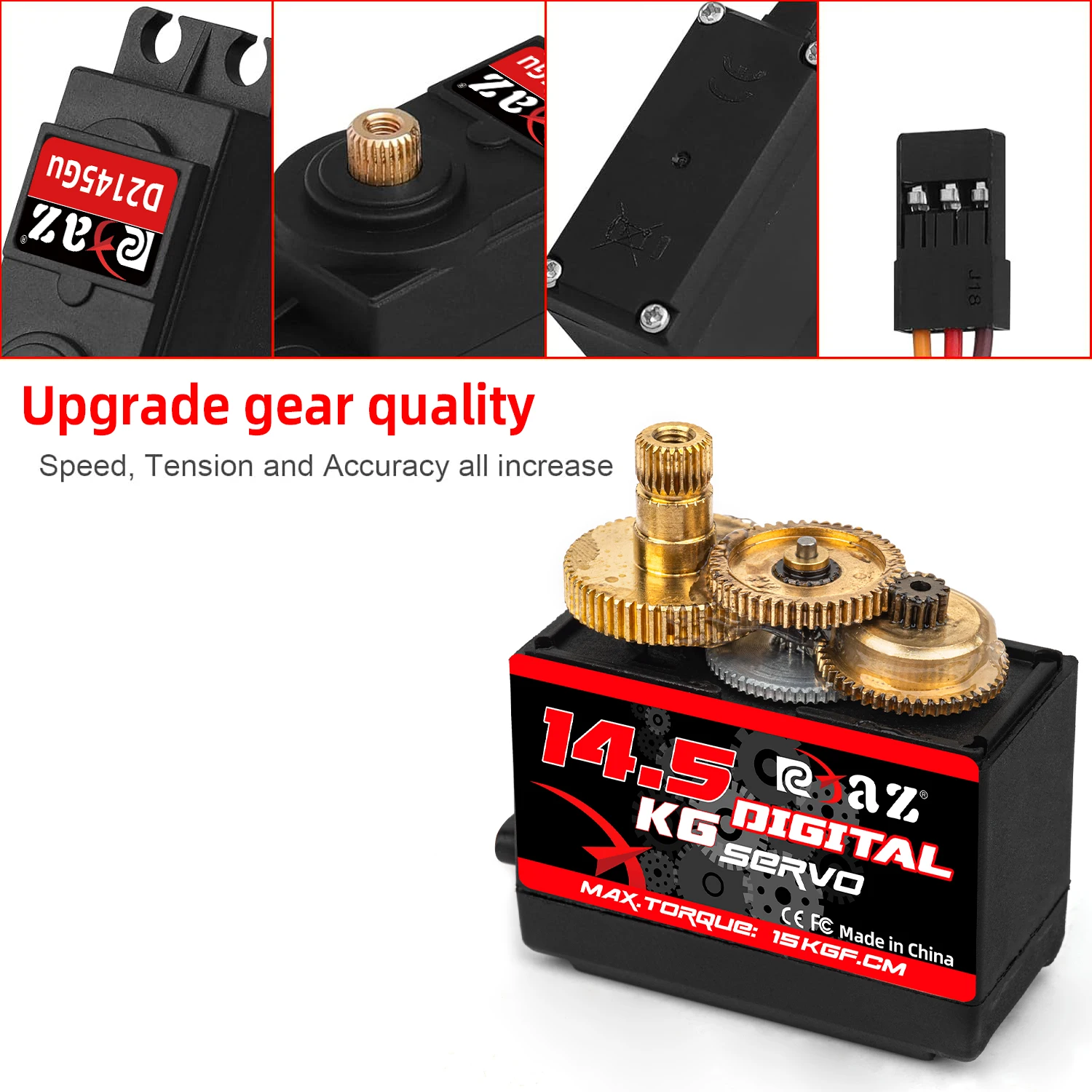

Gear Set Material : Metal gear

Weight: 66g

Size: 54 × 20× 45mm

Length of Connector cable: JR 200±5mm (exposed without plug)

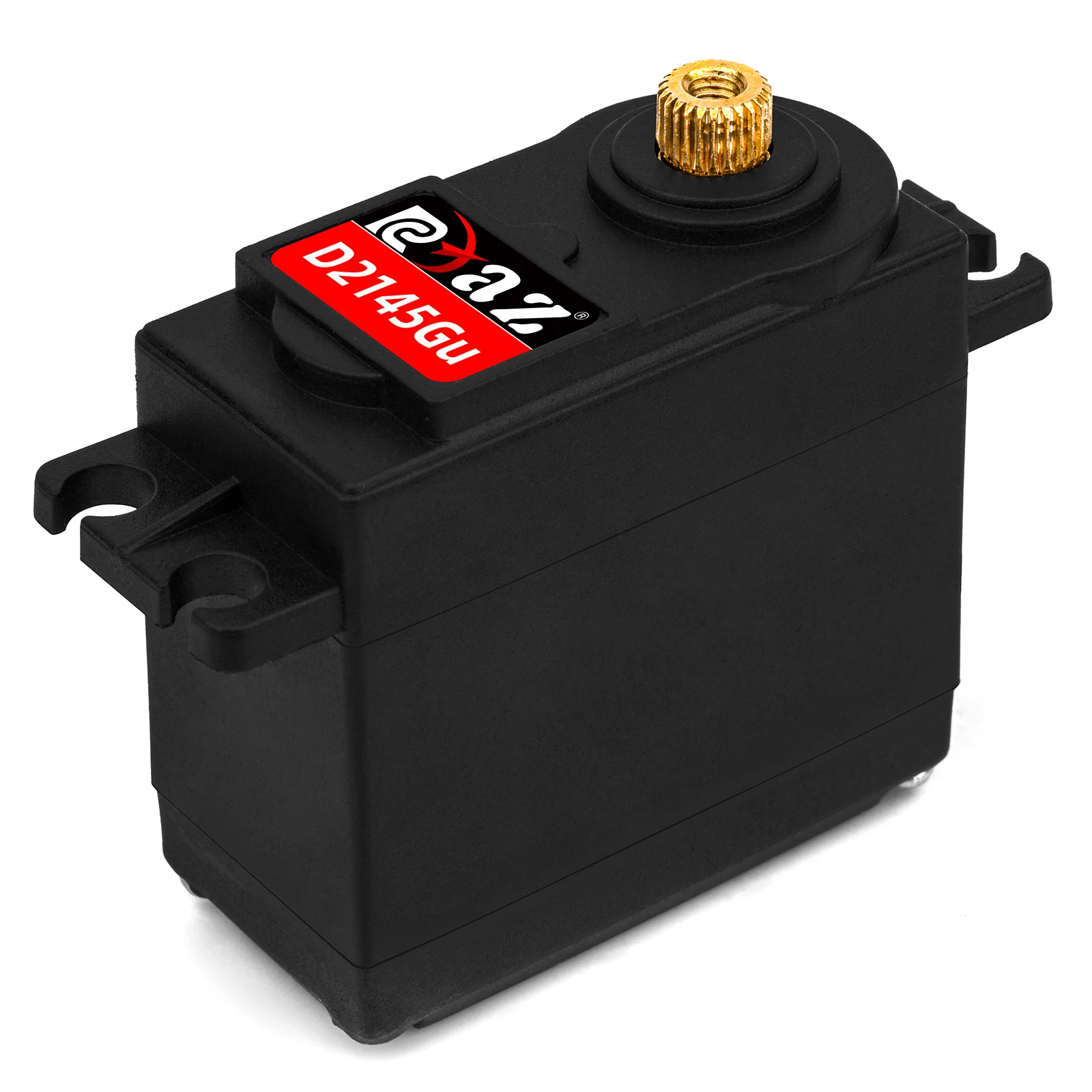

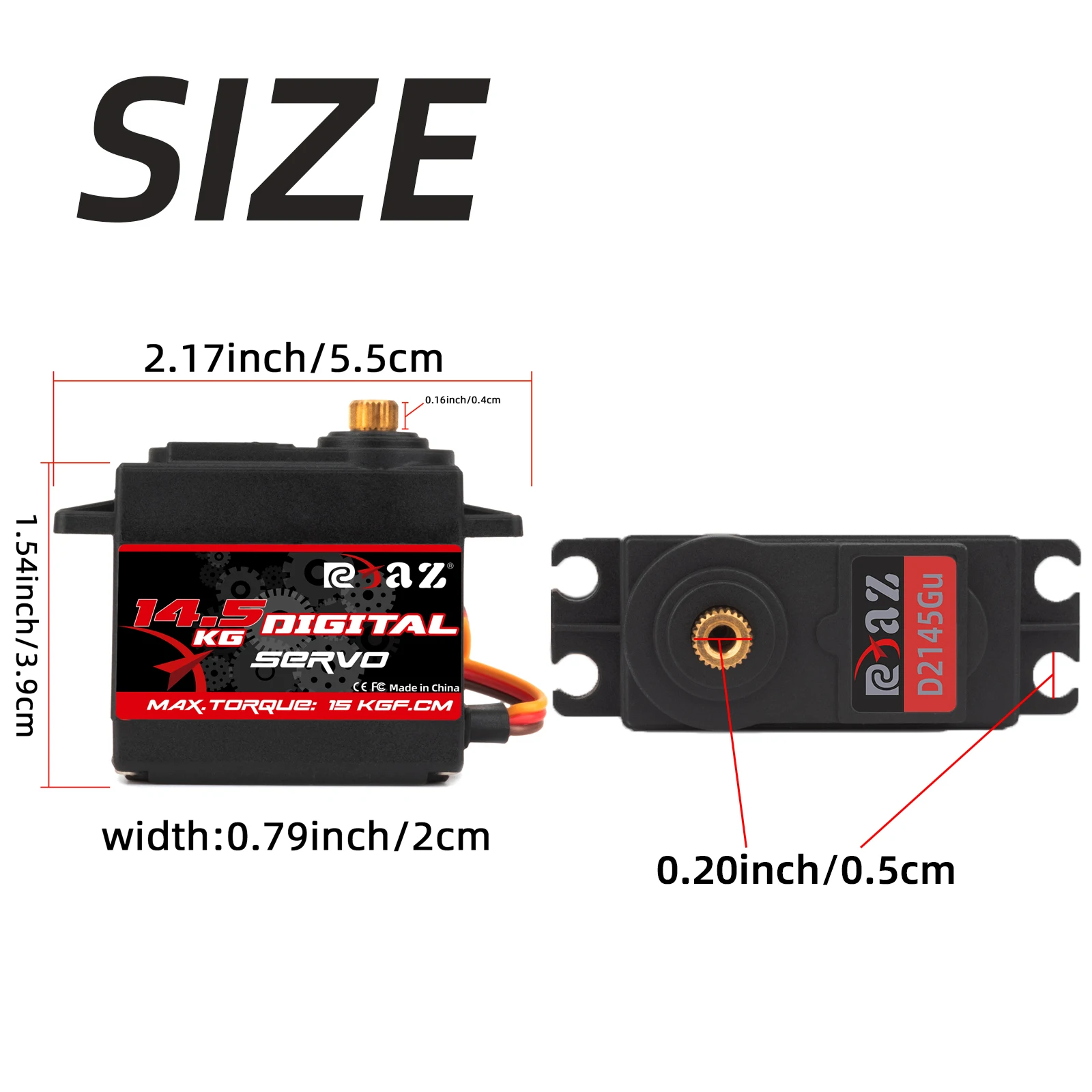

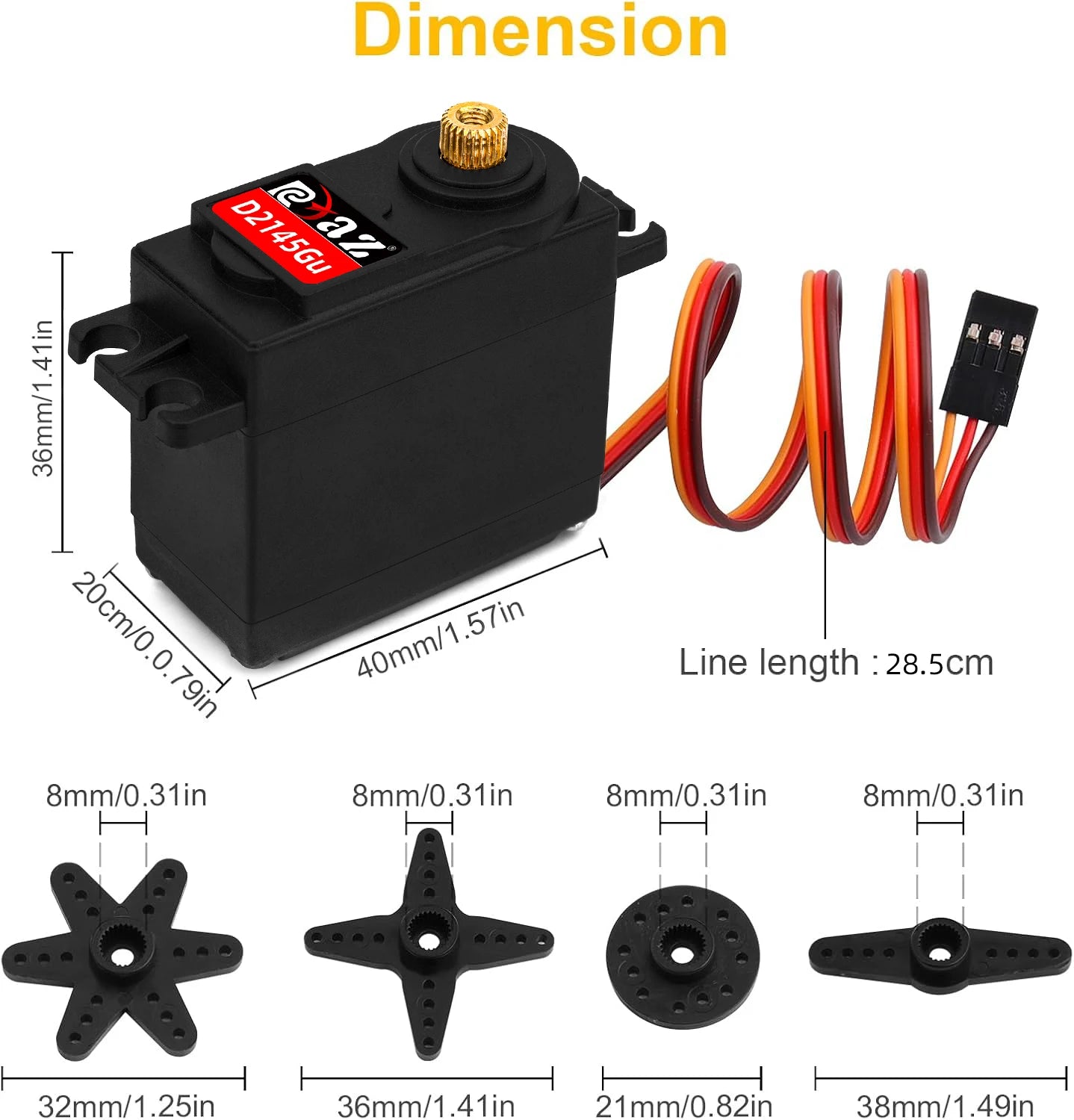

Item name: D2145Gu

Operating Voltage : 4.8~7.4V DC

Max. Torque : 4.8V≥12.5kgf·cm ； 16.5V≥12.5kgf·cm

No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°

Stall Current：4.8V≦680mA；6.0V≦780mA

Consumption Current* (No Load)：4.8V ≦130mA ；6.0V≦150mA

Max. Operating Travel Angle：180°±10°(500~2500μs）

Dead Band Width: ≤ 3us

Mechanical Limit Angle: 180°

Communication Interface: PWM

Motor Type: Coreless motor

Case Material: ABS

Gear Set Material : Copper gear

Weight: 67g

Size: 54 × 20× 45mm

Length of Connector cable: JR 200±5mm (exposed without plug)

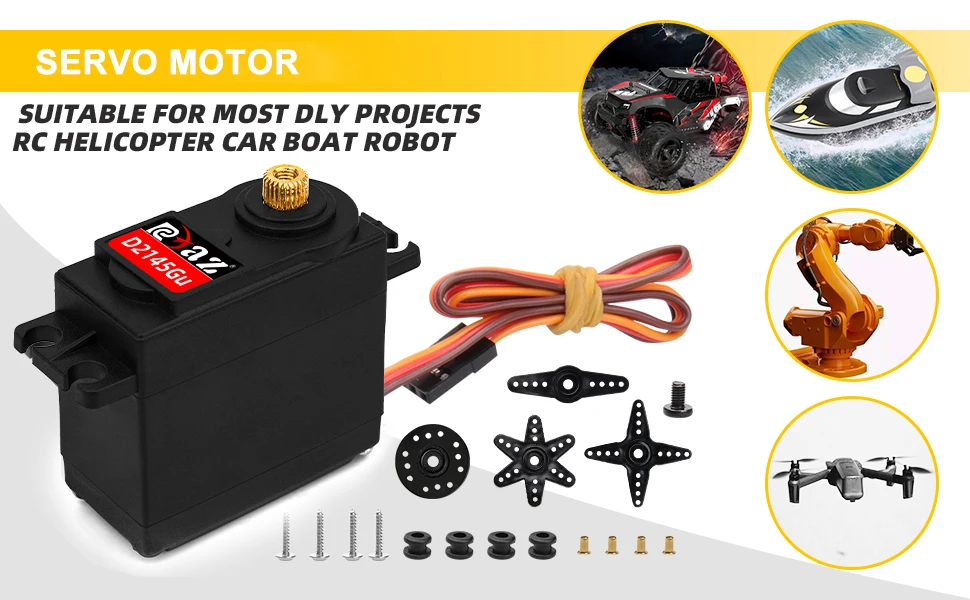

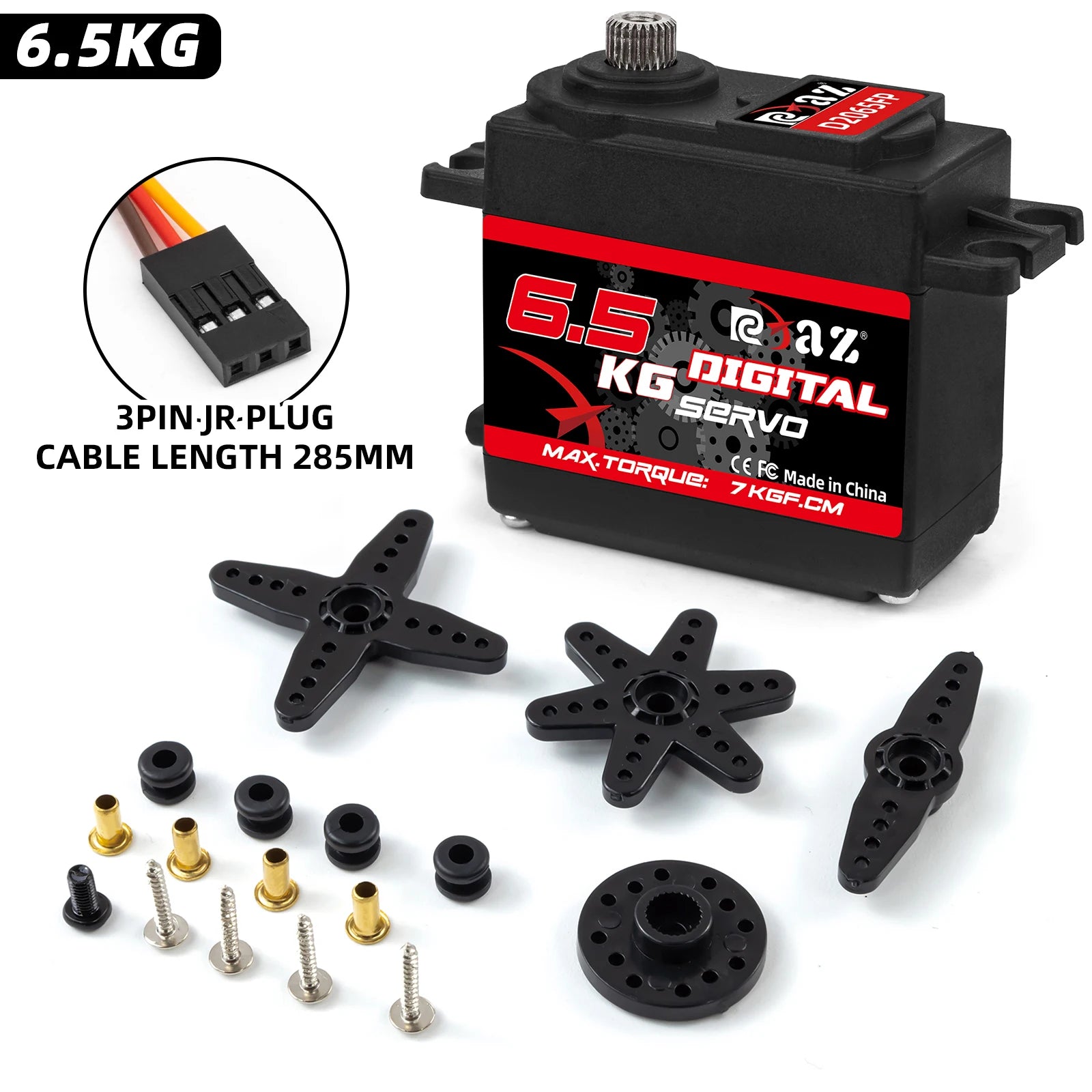

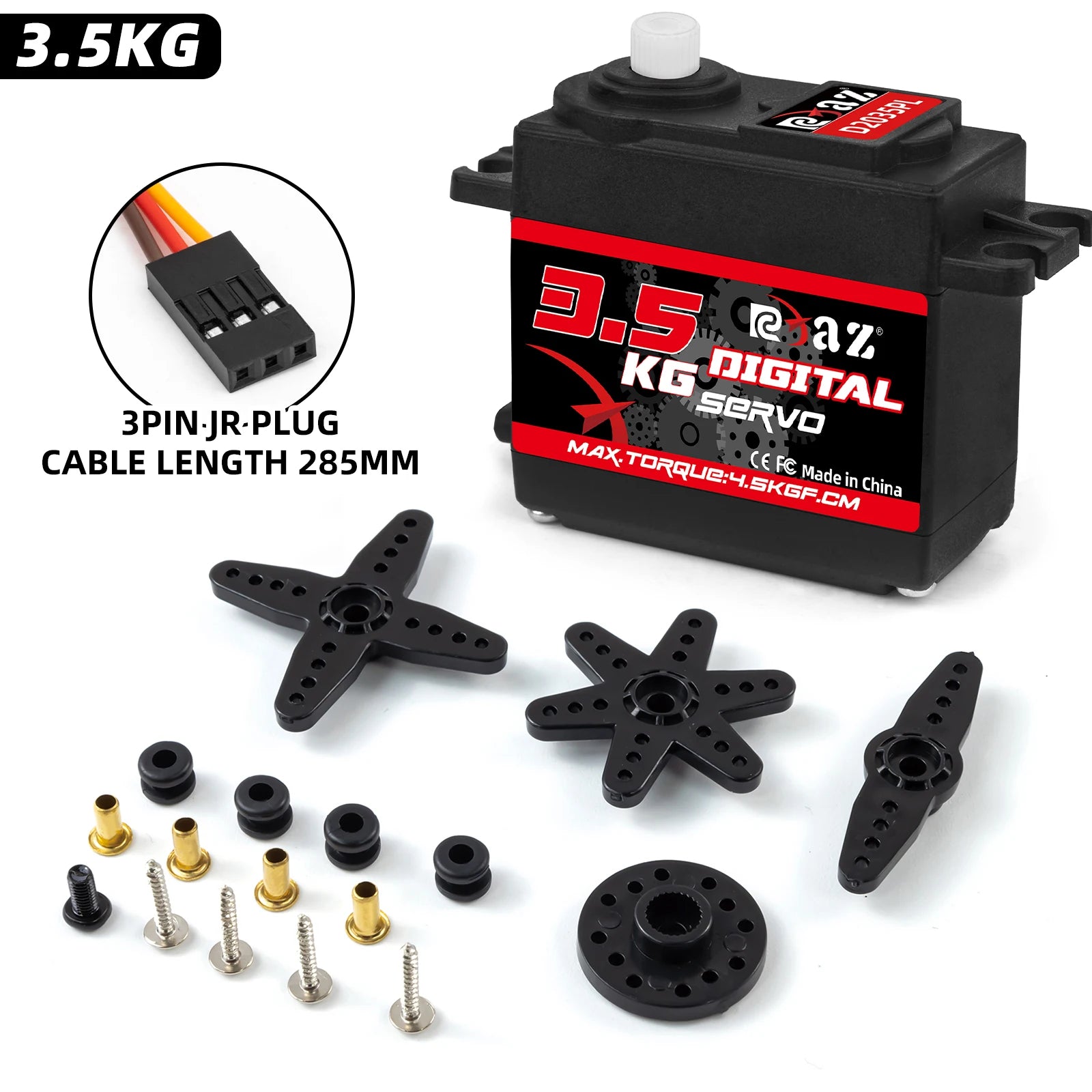

Package included:

1 * Digital Servo

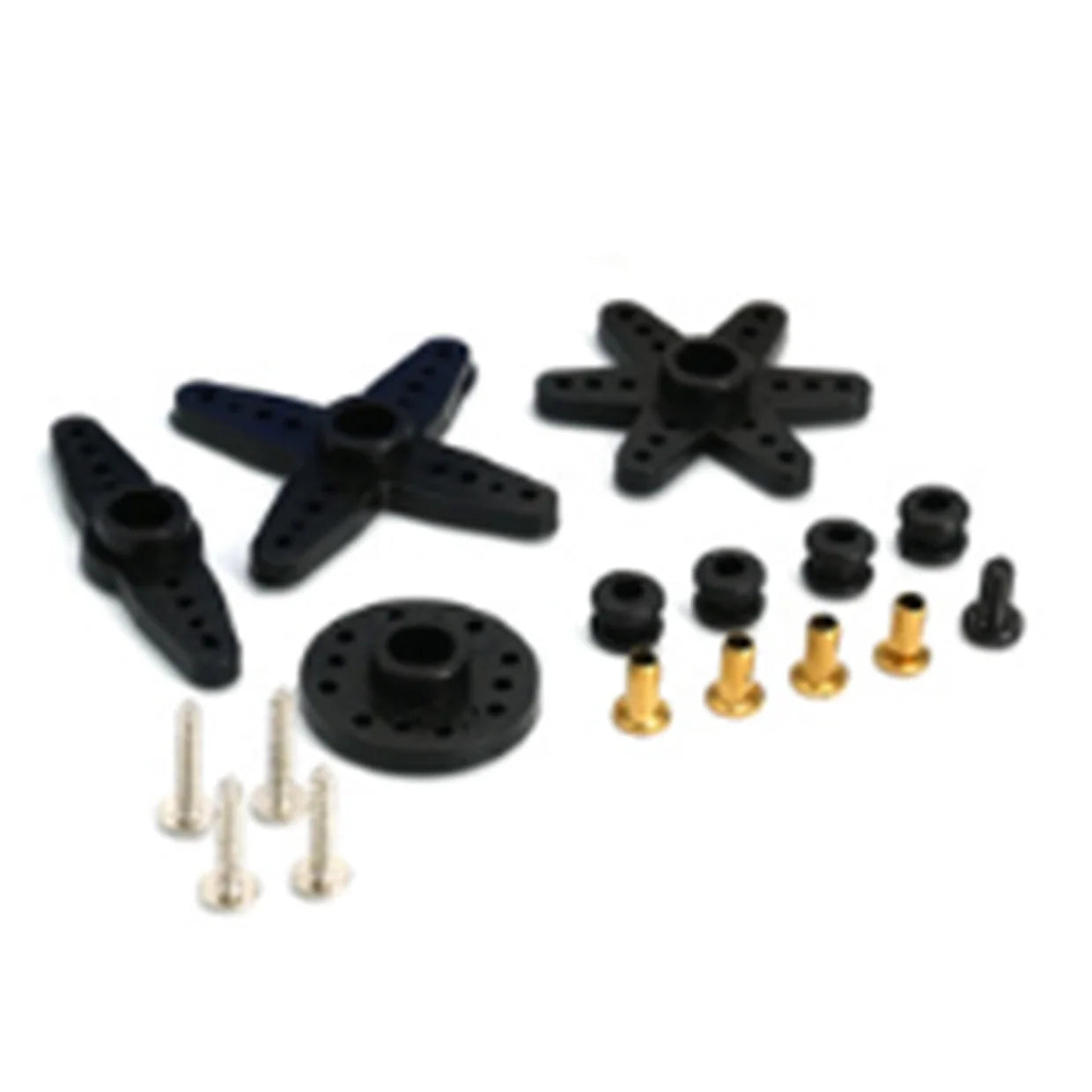

1 * Servo Arm Accessories
